SikaGrout 214 IN
HIGH PRECISION, NON-SHRINK, EXPANDING POURING GROUT
SikaGrout 214 IN price in Bangladesh is a cement based 1-component, ready to mix, non-shrink, ready to use, pourable and flowable, two stage expanding engineering grout in dry powder form. It is widely used for precision grouting in engineering objects subjected to static and dynamic loads.
- Dual Shrinkage compensated
- Suitable for temperature of above 0°C to 200°C
- Adjustable consistency
Usage
- To grout bearings, machine foundations, columns joints in precast construction etc.
- To grout anchors in concrete
- To grout cavities, gaps and voids in concrete
- To grout base plate of turbine, compressor, boilers, pumps and heavy machinery
- Sealing around penetrations
- Post fixings
Packaging
SikaGrout 214 IN price in Bangladesh

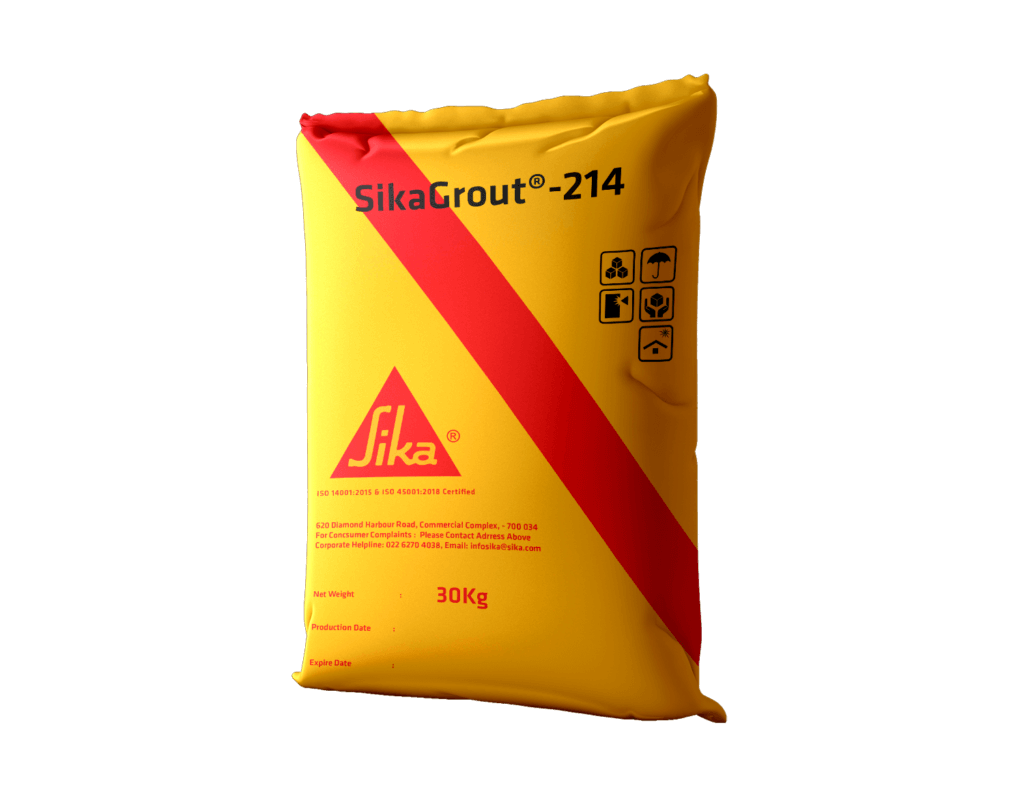

30kg bag
Advantages
- Dual Shrinkage compensated
- Suitable for temperature of above 0°C to 200°C
- Adjustable consistency
- Rapid strength development
- Excellent bond to Concrete
- No Segregation or bleeding
- High final strengths
- Impact and vibration resistant
- Non-corrosive to anchor bolts, base plate/saddle/frame, sliding plate
- Frost, oil and fire resistant
- Suitable to use under restraints and grout thickness required
- Maximum Flow distance is compatible to the dimensions of base plate/saddle/frame
- Resistant to the chemicals, gases etc. being handled in equipment
- Chloride free SikaGrout 214 IN price in Bangladesh
Product Information
Composition
Cement, special additives, and aggregates SikaGrout 214 IN price in Bangladesh
Shelf life
6 months from date of production.
Storage conditions
SikaGrout 214 IN price in Bangladesh Store properly in dry conditions in undamaged and unopened original sealed packaging.
Bulk density
1.15–1.60 kg/L (dry powder density) at +27 °C | (ASTM C948) |
Maximum grain size
2.36 mm
Application Information
Mixing ratio
| Flowable | Water : Powder = 0.15–0.16 by weight | 4.5–4.8 litres water per 30 kg bag |
| Pourable | Water : Powder = 0.14 by weight | 4.2 litres water per 30 kg bag |
Fresh mortar density
2000–2300 kg/m3
Layer thickness
100 mm max.
Flowability
| Flow cone (mm) ≥ 200 mm | (ASTM C230/230M) |
Ambient air temperature
+5°C min / +40°C max
Substrate temperature
+5°C min / +40°C max
Pot Life
| ~ 20 minutes at +30°C | (FIP 5.1) |
Initial set time
~30 minutes
Consumption
~1950 kg/m3 at water to powder ratio 0.15
Application steps
MIXING
Mixing Time : 3 minutes minimum
Mixing Tools : Mix grout powder mechanically in the correct ratio with water with low speed (max. 500 rpm) electric drill to avoid entraining too much air. Put around 80 to 90% of required water in the mixing drum, followed by SikaGrout 214 IN price in Bangladesh and then add the balance water. Dependent on the desired consistency and flow properties, the mixing ratio can be adjusted. Do not mix more grout, which cannot be used within Pot Life. DO NOT ADD EXTRA WATER.
APPLICATION
SikaGrout 214 IN price in Bangladesh Pour grout immediately after mixing into the prepared openings. Ensure that air displaced by the grout can easily escape; otherwise entrapped air will prevent full contact grouting. Wet porous substrates to saturated surface dry condition. When grouting base plates etc., ensure that a continuous and sufficient head of pressure is maintained to keep the grout flowing. To make optimum use of the products expansion properties, apply the grout as quickly as possible (within max. 15 minutes).
CURING TREATMENT
Keep any visible, exposed grout surfaces as small as possible and protect from premature drying out by suitable measures (keep moist, cover with wet Hessian etc.).
CLEANING OF EQUIPMENT
Clean all tools and application equipment with water immediately after use. Hardened/cured material can only be mechanically removed after using SikaGrout 214 IN price in Bangladesh.
